This was a very rewarding project for me. Although I have some experience with electronics, I have never done anything with tubes before. So researching this project and building it taught me a lot.

Most of the materials that I used were from junk.

Parts for tube amps are either very hard to get or very expensive if you can find them new, so I started collecting junk from friends and junk men.

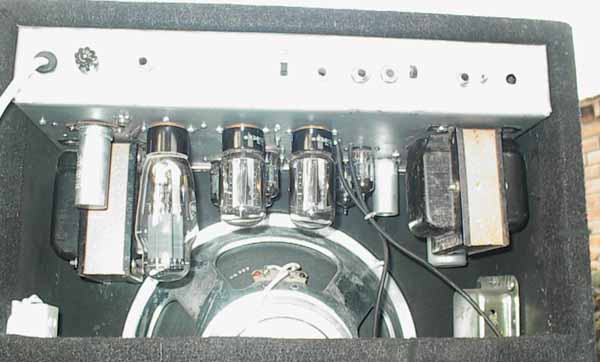

I came across a very old hi fi amp that I was able to get the output transformer and the power transformer from. The date written on the amp was 1954. (older than me) The output transformer and the power transformer are the hardest things to come by so I was happy about that.

I must note that when you use parts as old as these, your are very likely to run into bad parts, especially old capacitors that are leaky or shorted, resistors that the values have drifted drastically and tubes that are no good. When you are as inexperienced as I was, this can be frustrating as things fail or burn up and you can't figure out why. Because these generally use high voltages, they are hard to find.

I began to search a lot on the web for info and asked a lot of people a lot of questions and I am very thankful for everyones help which was very valuable.

I basically made the amp out of whatever junk I could find around. I found some scraps of wood in the yard. I also found some very short piled carpet laying around to cover the outside. The metal chassis is homemade from sheet metal and the faceplate is a piece of aluminum. The front grill is a piece of wire mesh that I got at the hardware store.

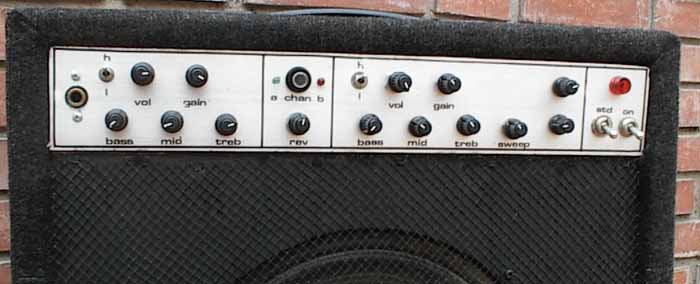

Face Plate:

The faceplate was made of a piece of aluminum U channel from a doorframe that was laying around.

I used Letraset to make the names and indications of the face plate. For the lines I used some pinstripe for cars that comes in a roll that I got in an auto supply store. After I finished putting on the face plate markings I then sprayed it with a can of clear coat to protect the Letraset markings.

As you can see, because I used what was at hand, the amp has a very non -traditional look to it, but if you were to see it, it really doesn't look so bad. Most people that don't know about amps don't even realize that it's homemade.

Schematics

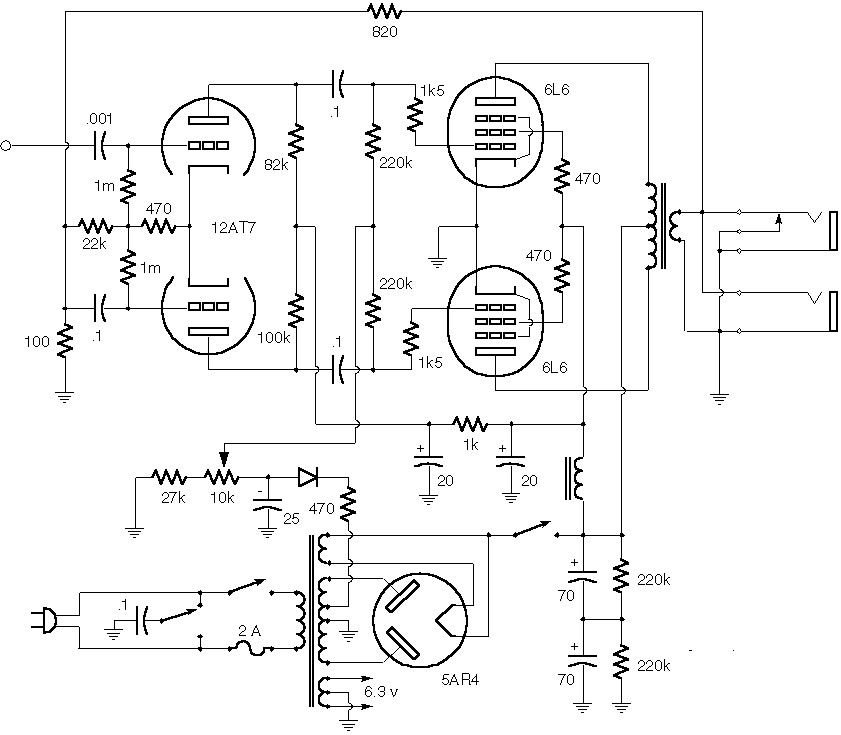

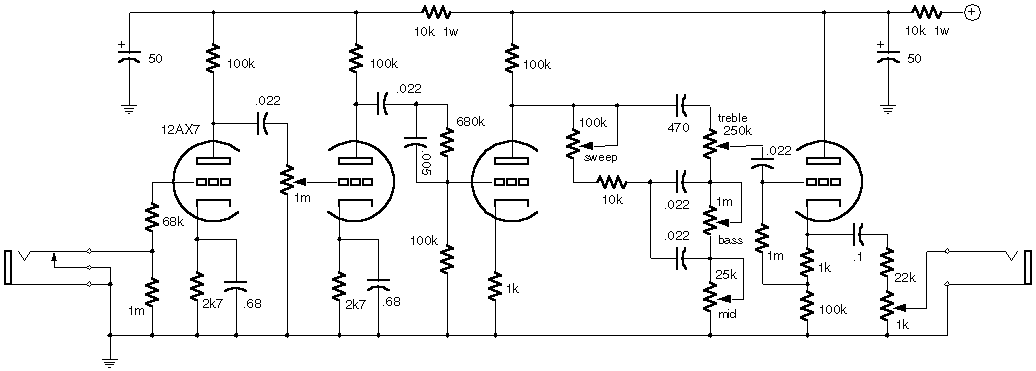

I used several different ideas from different schematic to make this amp. The preamps are basically Marshal design and the power amp circuit is based on a Fender Blackface amp. There are some modifications. For example: I installed a Fixed bias to cathode bias switch. There is also a switch on the global feedback resistor to switch from a 820 ohm resistor to a 100 K resistor that gives the option to practically eliminate global feedback which gives the amp a lot more volume and a more bluesy sound.

For any further questions you might have, please write me.
