Cheap 100 to 150 Watt Amp

Jon Tirone

(Also known as John Fisher)

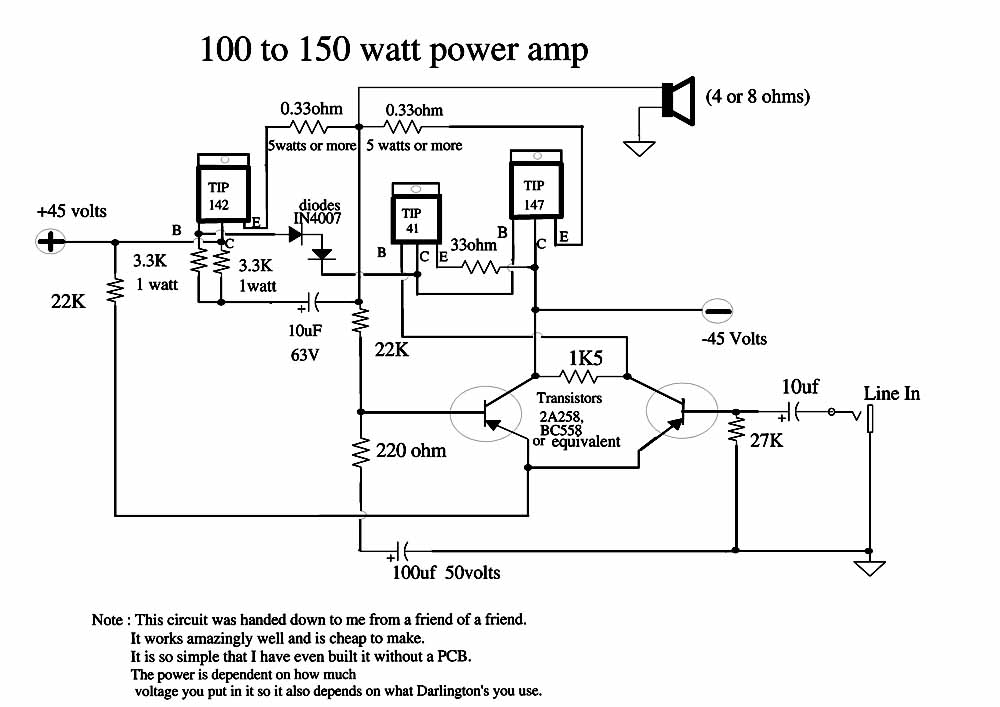

Here is a simple and cheap amp to make

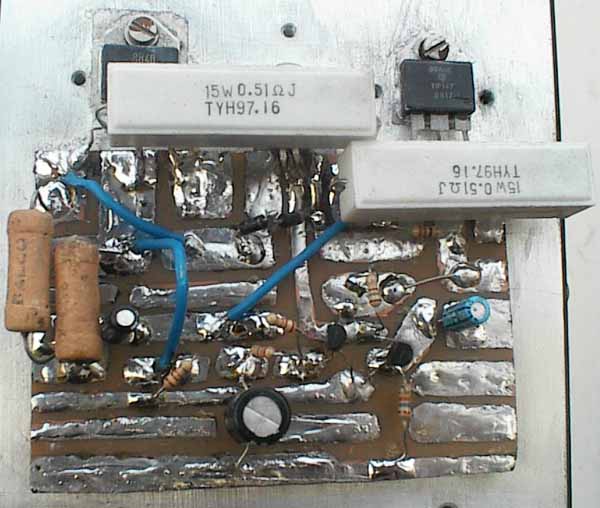

I could have made the circuit board smaller but "what the heck"

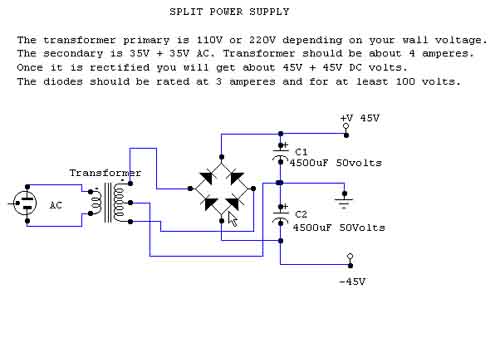

Here is a suggested circuit for the power supply.
